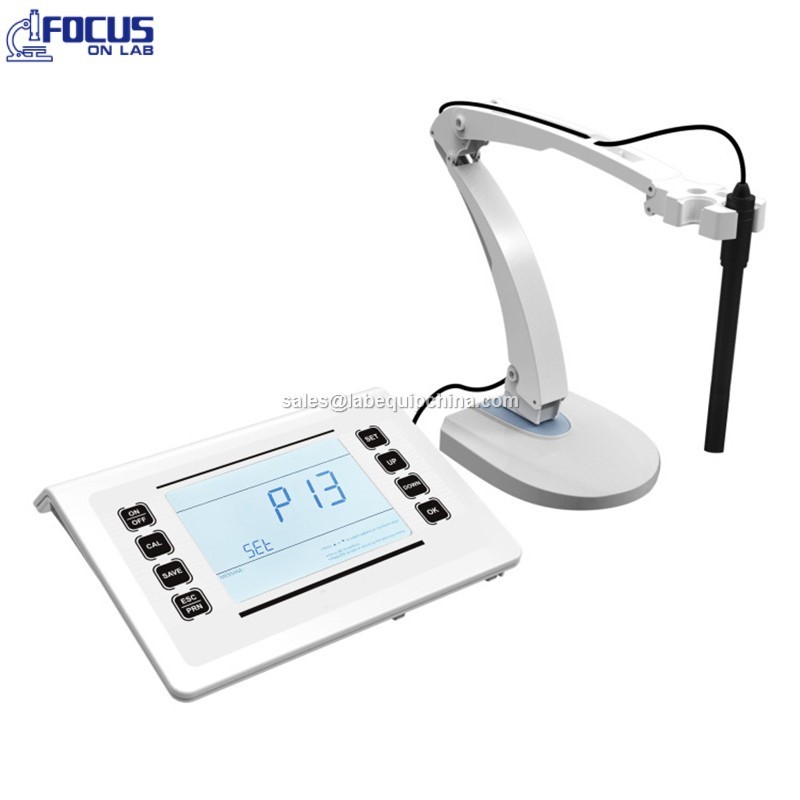

Benchtop Multiparameter PH Conductivity DO Ion Meter

1.6.5-inch LED screen with concise and friendly-use interface.
2.Poweful functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless bluetooth printing, and self-diagnosis information, etc.
3.Smart electrode status display to ensure accurate use.
4.Can store 1000 sets of test data, which can be transferred to USB and opened with Excel.

Product Description:

Benchtop Multiparameter PH meter/ Conductivity meter/DO meter/ION meter

Features:

6.5-inch LED screen with concise and friendly-use interface.
Poweful functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless bluetooth printing, and self-diagnosis information, etc.
Smart electrode status display to ensure accurate use.
Can store 1000 sets of test data, which can be transferred to USB and opened with Excel.

=========================================================================================================

PH Mode:

Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST. Support 1, 2, 3 point calibration.

Conductivity Mode:

Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm.

Can switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.

Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA

DO Mode:

It has functions of ATC, auto salinity compensation and auto pressure compensation.

Polarographic DO electrode, short polarization time (3-5 mintues).

Ion Mode:

Can test electric potential, pH, pX, ORP, ion concentration and temperature.

Can switch 6 kinds of concentration units: μg/L, mg/L, g/L, mol/L, mmol/L, PX.

Auto recognition of buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3, 4, 5 point calibration.

Specifications:

Model			P711	P712	P713	P714	P715	P716	P717	P718
Meters function		PH/MV	●		●		●		●
		Cond./TDS/Sal./Res		●	●			●	●
		DO				●	●	●	●
		Ion								●
		Temp.	●	●	●	●	●	●	●	●
PH	Measuring range	(-2.00 ~ 18.00)pH	●		●		●		●
	Resolution	0.01 pH	●		●		●		●
	Accuracy	Electrode:±0.01 pH, Meter:±0.02 pH	●		●		●		●
	Input current	≤2×10^-12A	●		●		●		●
	Input impedance	≥1×10¹²Ω	●		●		●		●
	Stability	±0.02 pH/3h	●		●		●		●
MV	Temp. compensation	(0 ~ 100)℃, auto or manual	●		●		●		●
	Measuring range	±1999.9mV	●		●		●		●
	Resolution	0.1 mV	●		●		●		●
	Accuracy	±0.03% FS	●		●		●		●
Cond.	Measuring range	Conductivity:(0.00~20.00)μS/cm, (20.0~200.0)μS/cm, (200~2000)μS/cm, (2.00~20.00)mS/cm, (20.0~200.0)mS/cm, (200~2000)mS/cm (K=10)		●	●			●	●
		TDS:(0 ~ 100)g/L		●	●			●	●
		Salinity:(0 ~ 100)ppt		●	●			●	●
		Resistivity:(0 ~ 100)MΩ·cm		●	●			●	●
	Resolution	0.01/0.1/1μS/cm; 0.01/0.1mS/cm		●	●			●	●
	Accuracy	Electrode: ±0.5% FS, Meter: ±0.8% FS		●	●			●	●
	Temp. compensation	(0 ~ 50)℃, auto		●	●			●	●
	Electrode constant	0.1 / 1 / 10 cm^-1		●	●			●	●
DO	Reference Temp.	25℃、20℃、18℃				●	●	●	●
	Measuring range	(0-20.00)mg/L(ppm), (0-200.0)%				●	●	●	●
	Resolution	0.1/0.01 mg/L(ppm), 1/0.1 %				●	●	●	●
	Accuracy	Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L				●	●	●	●
	Response time	≤30s (25℃, 90%response)				●	●	●	●
	Residual current	≤0.1 mg/L				●	●	●	●
	Temp compensation	(0 ~ 45)℃, auto				●	●	●	●
	Salinity compensation	(0 ~ 45) ppt, auto				●	●	●	●
	Pressure compensation	(80 ~ 105) kPa, auto				●	●	●	●
	Auto calibration	Air saturated by water, water saturated by air				●	●	●	●
	Electrode type	Polarographic				●	●	●	●
PX	Measuring range	(0.000-14.000) pX								●
	Resolution	0.01 pX								●
	Accuracy	±0.02 pX								●
	Temp. compensation	(0 ~ 100)℃, auto or manual								●
	Auto calibration	1, 2, 3, 4, 5 point								●
Ion Conc.	Measuring range	(0-19990)								●
	Resolution	4 significant figures (scientific notation)								●
	Accuracy	±0.5%								●
Temp	Measuring range	(0 ~ 100)℃	●	●	●	●	●	●	●	●
	Resolution	0.1℃	●	●	●	●	●	●	●	●
	Accuracy	5 ~ 60℃:±0.4℃ Others: ±0.8℃	●	●	●	●	●	●	●	●
Other	Display	6.5-inch LED screen	●	●	●	●	●	●	●	●
	Data storage	1000 sets	●	●	●	●	●	●	●	●
	Power	12V/1A	●	●	●	●	●	●	●	●
	Output	USB, Bluetooth	●	●	●	●	●	●	●	●
	Ambient Temp.	5 ~ 35 ℃	●	●	●	●	●	●	●	●
	Ambient Humidity	≤85%	●	●	●	●	●	●	●	●
	Shipping size	470x430x72mm/3kg	●	●	●	●	●	●	●	●
