1.Nichrome wireheating element ,High quality aluminum silicate cotton Shell (Insulation Layer) 2.Steplesss peed adjustable,Max surface temperature 450 ℃,Liquid 300 ℃

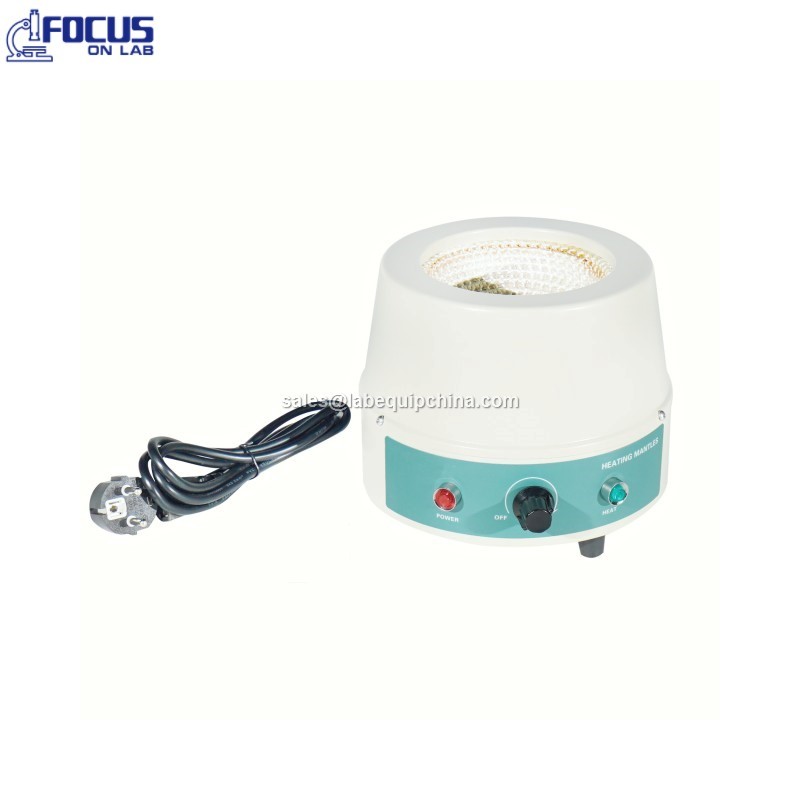

Heating mantle is a kind of general heating instrument in the laboratory, which is composed of a hemispherical heating inner sleeve and a control circuit made of alkali free glass fiber and metal heating wire. It is mostly used for precise temperature control and heating of glass containers. It has the characteristics of fast heating, high temperature, easy operation, and durability, making it the most ideal instrument for conducting precise temperature control heating experiments.
Nichrome wireheating element ,High quality aluminum silicate cotton Shell (Insulation Layer)
Steplesss peed adjustable,Max surface temperature 450 ℃,Liquid 300 ℃
Model
| Capacity (ml) | Surface Max. Temp.( ℃) | Speed range (rpm) | Heat power (W) | External Size (mm) | Shipping size | Voltage(V) |
| HM100 | 100 | 450℃ | -- | 100 | Φ220*165 | 23*23*20cm/3kg | 100-120V / 200-240V |
| HM250 | 250 | 450℃ | -- | 150 | Φ220*165 | 23*23*20cm/3kg | 100-120V / 200-240V |
| HM500 | 500 | 450℃ | -- | 250 | Φ220*165 | 23*23*20cm/3kg | 100-120V / 200-240V |
| HM1000 | 1000 | 450℃ | -- | 350 | Φ280*220 | 29*29*30cm/6kg | 100-120V / 200-240V |
| HM2000 | 2000 | 450℃ | -- | 450 | Φ330*230 | 34*34*35cm/7kg | 100-120V / 200-240V |
| HM3000 | 3000 | 450℃ | -- | 600 | Φ340*245 | 36*36*30cm/8kg | 200-240V |
| HM5000 | 5000 | 450℃ | -- | 800 | Φ350*250 | 39*39*31cm/9kg | 200-240V |
| HM10000 | 10000 | 450℃ | -- | 1200 | Φ425*320 | 43*43*35cm/12kg | 200-240V |
| HM20000 | 20000 | 450℃ | -- | 2500 | Φ470*340 | 51*51*38cm/20kg | 200-240V |
