1.Digital control with max. temperature 380℃，max speed up to 1500rpm. 2.Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
Digital control with max. temperature 380℃，max speed up to 1500rpm.
Aluminum cover with ceramic coating work plate provides fast heating perfermance, and strong compatibility with various heating containers and heating blocks.
High-resolution screen display actual temperaturesand and speed.
Brushless DC motor enables more powerful speed control and maintenance free
External temperature control is possible by connecting the temperature sensor(PT 1000)

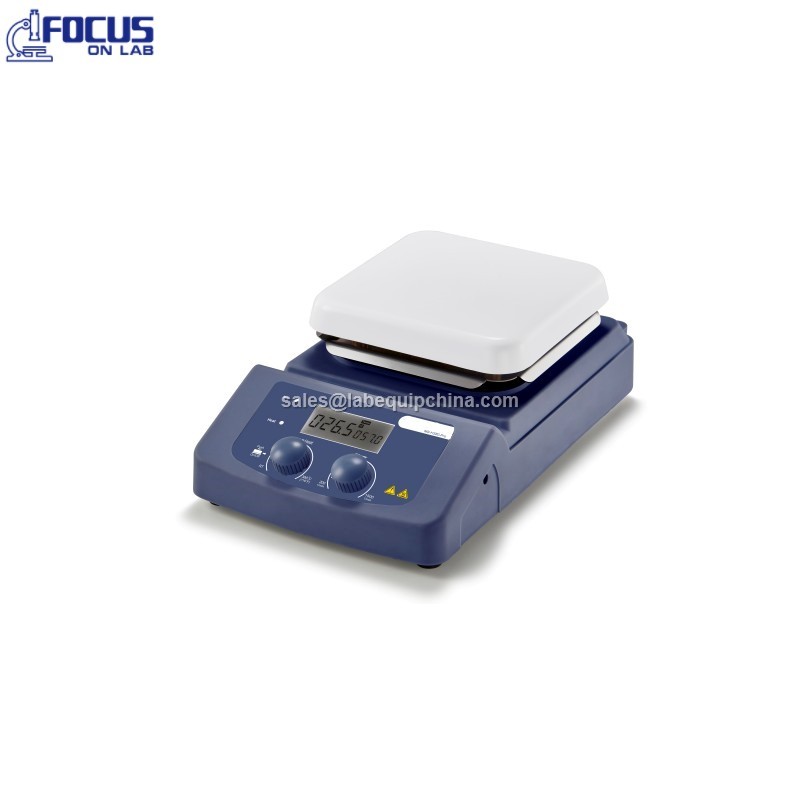

| Model | MS-H380-pro |
| Work plate Dimension | 140x140mm |
| Work plate material | Aluminum cover with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity | 5L |
| Max. magnetic bar | 80mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.±5-380℃ |
| Heating liquid temp control accuracy | ±1℃(<100℃)±1%(>100℃) |
| Overheating temp protection | 420℃ |
| Temp display accuracy | ±0.1℃ |
| External temp sensor | PT1000( accuracy±0.2℃ ) |
| "Hot" warning | - |
| Data connector | - |
| Protection class | IP21 |
| Timer function | - |
| Motor rating input | 2.4W |
| Motor rating output | 1.8W |
| Power | 510W |
| Heating output | 500W |
| Voltage,Frequency | 100-120/200-240V，50/60Hz |
| Dimension | 320x180x108mm/2.2kg |
