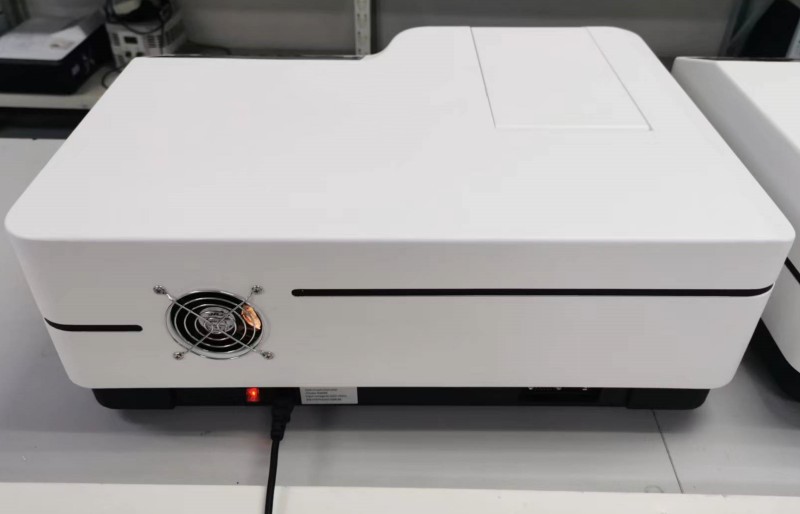

Touch screen double beam uv vis spectrophotometer

Touch screen double beam uv vis spectrophotometer

1)10.1 inches TFT color touch screen
2)Auto wavelength setting
3)Can store 1024M test data and curves
4)Large sample compartment for 5-100mm cuvettes

Product Description:

Touch screen double beam uv vis spectrophotometer

Features:

  • 10.1 inches TFT color touch screen

  • Auto wavelength setting

  • Can store 1024M test data and curves

  • Large sample compartment for 5-100mm cuvettes

  • Equipped with SD card/USB port which can export testing data to Excel for further analysis

  • Multi functions like photometric analysis,quantitative analysis,spectral scanning, kinetics, DNA/protein analysis, multi-wavelength test

  • Extensive optional accessories :auto 8-cell holder, film holder, tube rack, peltier/sipper system, 21 CFR compliant software,built-in thermal printer.

Specifications:

ModelK7000K7001K7100SK9000K9001K9001S
Optical SystemSingle Beam, Grating 1200 lines/mmDouble Beam, Grating 1200 lines/mm
Wavelength Range190-1100nm
Spectral Bandwidth2nm1nm0.5/1/2/4/52nm1nm0.5/1/2/4/5
Wavelength Accuracy±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all
WL Repeatability≤0.1nm≤0.1nm≤0.1nm≤0.1nm≤0.1nm≤0.1nm
Photometric Accuracy0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Photometric Range0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)
Stray Light≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm
Stability±0.0005A/h@500nm±0.0005A/h@500 nm±0.0005A/h@500 nm±0.0003A/h@500 nm±0.0003A/h@500 nm±0.0003A/h@500 nm
Baseline Flatness±0.002A±0.001A±0.001A±0.002A±0.001A±0.001A
Noise0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm
Work ModeT, A, C, ET, A, C, ET, A, C, ET, A, C, ET, A, C, ET, A, C, E
Scanning SpeedHi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)
Light SourceImported Deuterium & Tungsten lampImported Deuterium & Tungsten lampImported Deuterium & Tungsten lampImported Deuterium & Tungsten lampImported Deuterium & Tungsten lampImported Deuterium & Tungsten lamp
DetectorImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon Photodiode
Cuvette Holder10mm manual 4-cell holder10mm manual 4-cell holder10mm manual 4-cell holder10mm single hole cell holder10mm single hole cell holder10mm single hole cell holder
OutputUSB/RS232USB/RS232USB/RS232USB/RS232USB/RS232USB/RS232
PowerAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60Hz
Shipping Size810*660*390mm/26kg810*660*390mm/26k880*690*520mm/ 46kg810*660*390mm/ 26kg810*660*390mm/ 26kg880*690*520mm/ 46kg
Standard Accessories10mm glass cuvette * 4, 10mm quartz cuvette *2 , Dust cover,Power line, User's Manual,PC software


Tags:

PREVIOUS：UV1900 UV1800 K6000 K8000 double beam scanning uv vis spectrophotometer NEXT：UV1600 Cheap Single beam Scanning UV VIS Spectrophotometer China
Inquiry:
RELATED PRODUCTS:

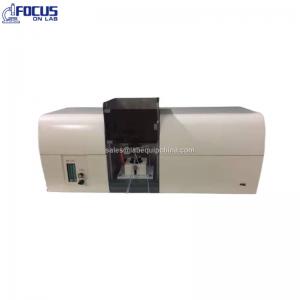

2800 AAS Flame Atomic Absorption Spectrophotometer
