1.Eyepiece:WF10X(WF16X optional) 2.Achromatic Objective:4X,10X,40X(S),100X(S,Oil) 3.Viewing Head:Monocular head/Monocular with teaching head/Seidentopf Binocular Head/Seidentopf Trinocular Head 4.Nosepiece:Quadruple 5.Stage:Double Layer Mechanical Stage; Stage size:120mm*125mm 6.Condenser:N.A=1.25 Abbe condenser with Iris diaphragm&filter 7.Focusing:Coaxial Coarse And Fine Adjustment , Focusing Range 30mm;Focusing Interval 0.002mm 8.Illumination:220V/110V LED(1W) 9.Optional:Halogen lamp,

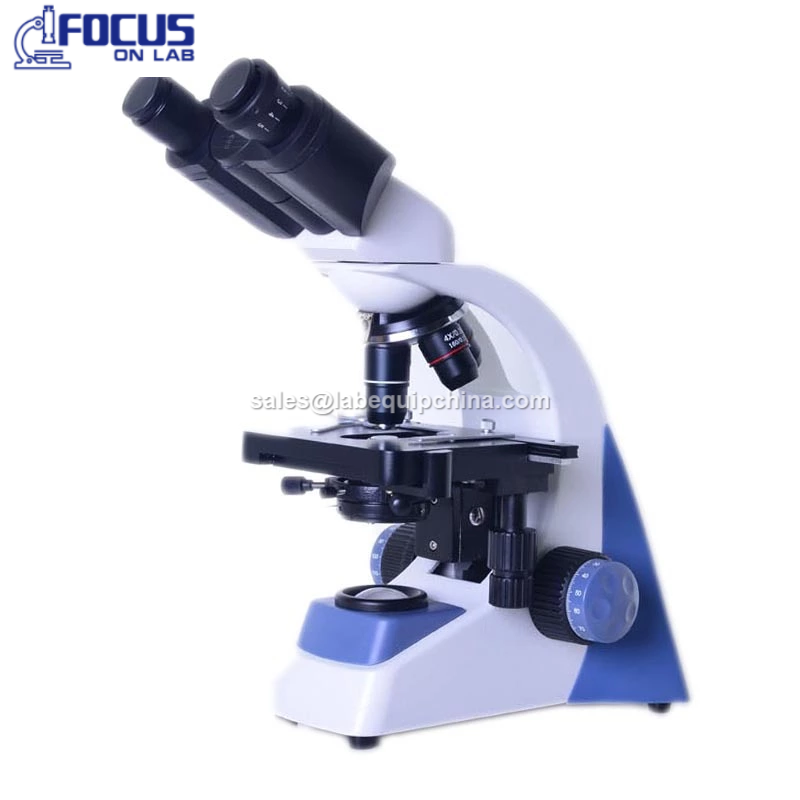

Biological microscope is a precision optical instrument and widely used to observe microorganisms, cells, bacteria, tissue culture, suspensions, sediments by medical and health institutions, colleges , and research institutions.
How to choose Biological microscope ?
According to the number of eyepiece,microscope can be divided into monocular microscopes, binocular microscopes and trinocular microscopes.You can choose the suitable biological microscope according to microscope's magnification range, test sample type,your budget etc.
| Items | Configuration | BM-500D | BM-500B | BM-500SM | BM-500E |
| Eyepiece | WF10X(WF16X optional) | ● | ● | ● | ● |
| Achromatic Objective | 4X,10X,40X(S),100X(S,Oil) | ● | ● | ● | ● |
| Viewing Head | Monocular head,Inclined 30° | ● | |||
| Seidentopf Binocular Head，Inclined 30°， | ● | ||||
| Seidentopf Trinocular Head, | ● | ||||
| Monocular with teaching head Inclined 30°,vertical 360° rotatable | ● | ||||
| Nosepiece | Quadruple | ● | ● | ● | ● |
| Stage | Double Layer Mechanical Stage; Stage size:120mm*125mm | ● | ● | ● | ● |
| Condenser | N.A=1.25 Abbe condenser with Iris diaphragm&filter | ● | ● | ● | ● |
| Focusing | Coaxial Coarse And Fine Adjustment , Focusing Range30mm;Focusing Interval 0.002mm | ● | ● | ● | ● |
| Illumination | 220V/110V LED(1W) | ● | ● | ● | ● |
| Shipping size | 370*230*470mm/5kg | ● | ● | ● | ● |
| Optional | Halogen lamp,WF16X, | ||||
