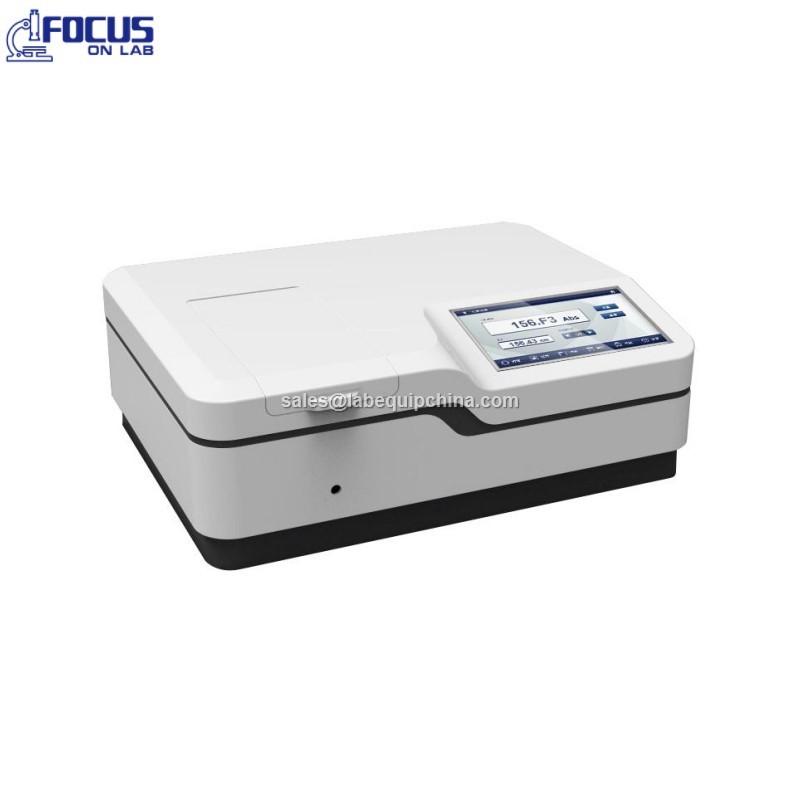

Xenon Lamp double beam uv vis spectrophotometer

Xenon Lamp double beam uv vis spectrophotometer

1.Lifetime of Xenon lamp is over 3 years.
2.Large sample compartment for 5-100mm cuvettes
3.Multi functions like photometric analysis,quantitative analysis,spectral scanning, kinetics, DNA/protein analysis, multi-wavelength test

Product Description:

Xenon Lamp double beam uv vis spectrophotometer

Features:

  • The Xenon lamp is Hamamatsu without preheating in usage.

  • Lifetime of Xenon lamp is over 3 years.

  • Auto wavelength setting

  • Can store 1024M test data and curves

  • Large sample compartment for 5-100mm cuvettes

  • Equipped with USB port which can export testing data to Excel for further analysis

  • Multi functions like photometric analysis,quantitative analysis,spectral scanning, kinetics, DNA/protein analysis, multi-wavelength test

  • Extensive optional accessories :auto 8-cell holder, film holder, tube rack, peltier/sipper system, 21 CFR compliant software,built-in thermal Printer

Specifications:

ModelX8000X8001X8001SX9000X9001X9001S
Optical SystemDouble Beam, Grating 1200 lines/mm
Wavelength Range190-1100 nm
Spectral Bandwidth2nm1nm0.5/1/2/4/52nm1nm0.5/1/2/4/5
Wavelength Accuracy±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all±0.1nm@656.1nm, ±0.3nm@all
WL Repeatability≤0.1nm≤0.1nm≤0.1nm≤0.1nm≤0.1nm≤0.1nm
Photometric Accuracy0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Photometric Range0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)0-200%T, -0.3~3A, 0-9999C (0-9999F)
Stray Light≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm≤0.03%T@220nm, 360nm
Stability±0.0005A/h@500nm±0.0005A/h@500 nm±0.0005A/h@500 nm±0.0003A/h@500 nm±0.0003A/h@500 nm±0.0003A/h@500 nm
Baseline Flatness±0.002A±0.001A±0.001A±0.002A±0.001A±0.001A
Noise0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm0.0005A@500nm
Work ModeT, A, C, ET, A, C, ET, A, C, ET, A, C, ET, A, C, ET, A, C, E
Scanning SpeedHi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)Hi, Med, Low (Max. 3000nm/min)
Display7 inch color screen10 inch touch screen
Light SourceImported Xenon LampImported Xenon LampImported Xenon LampImported Xenon LampImported Xenon LampImported Xenon Lamp
DetectorImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon PhotodiodeImported Silicon Photodiode
Cuvette Holder10mm single hole cell holder10mm single hole cell holder10mm single hole cell holder10mm single hole cell holder10mm single hole cell holder10mm single hole cell holder
OutputUSB/RS232USB/RS232USB/RS232USB/RS232USB/RS232USB/RS232
PowerAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60HzAC 220V/50Hz or AC 110V/60Hz
Shipping Size810*660*390mm/26kg810*660*390mm/26k880*690*520mm/ 46kg810*660*390mm/ 26kg810*660*390mm/ 26kg880*690*520mm/ 46kg
Standard Accessories10mm glass cuvette * 4, 10mm quartz cuvette *2 (UV) , Dust cover,Power line, User's Manual,PC software


Tags:

No previous NEXT：N6000 Double Beam UV Vis Spectrophotometer Price
Inquiry:
RELATED PRODUCTS:
N6000 Double Beam UV Vis Spectrophotometer Price

N6000 Double Beam UV Vis Spectrophotomet

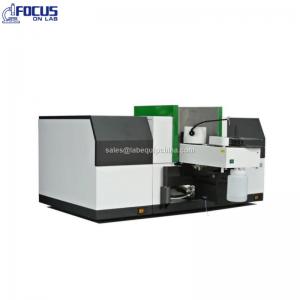

7800 Flame Graphite Furnace Atomic Absorption Spectrophotometer
